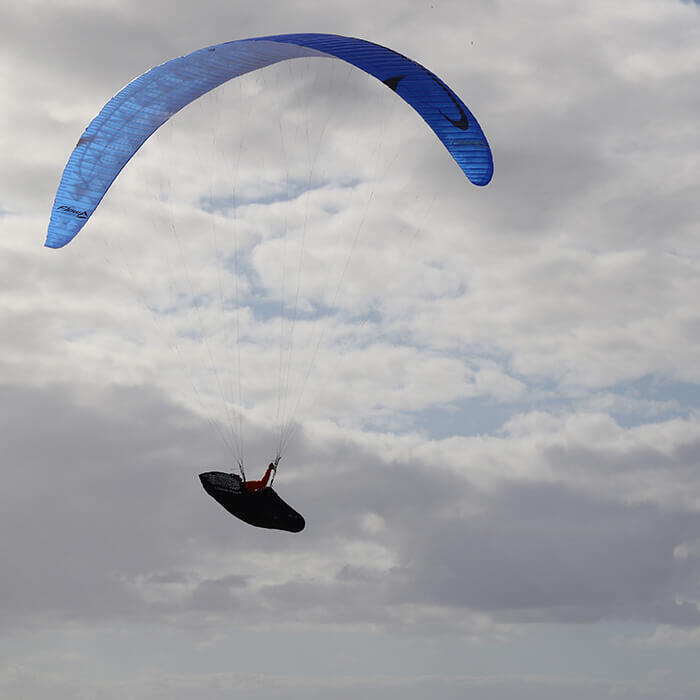

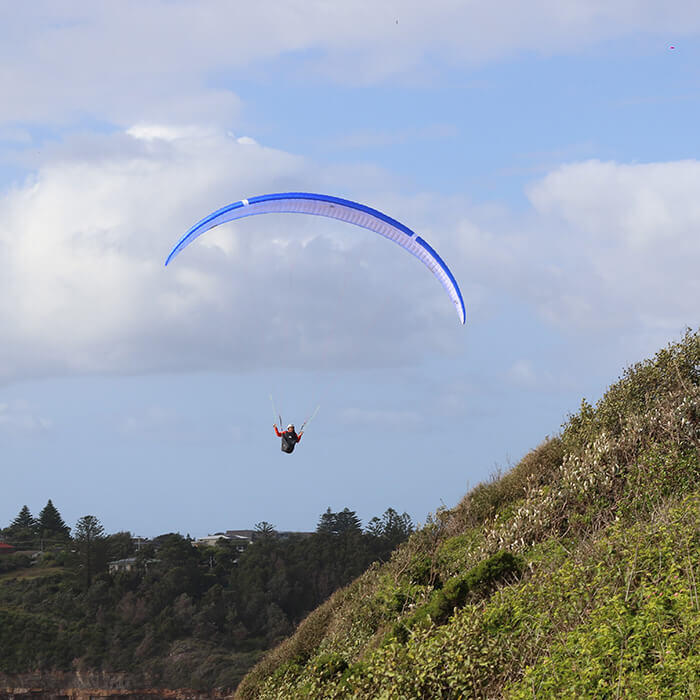

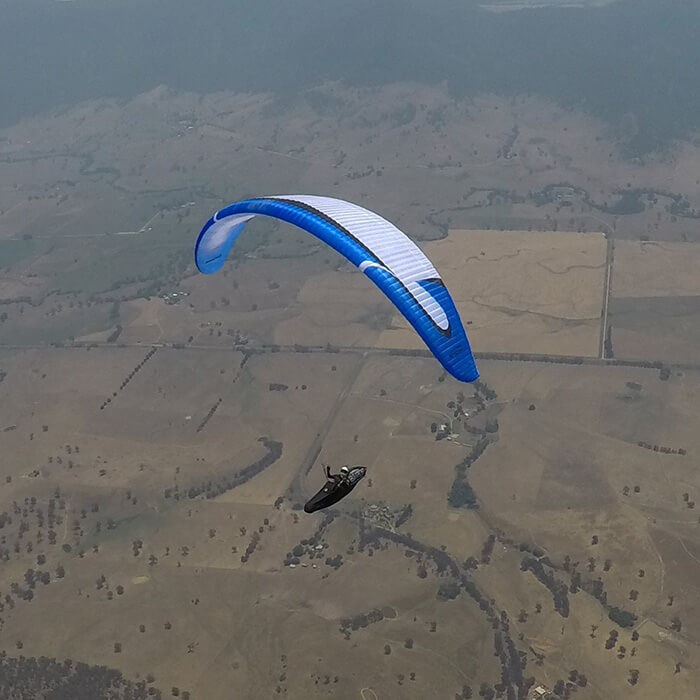

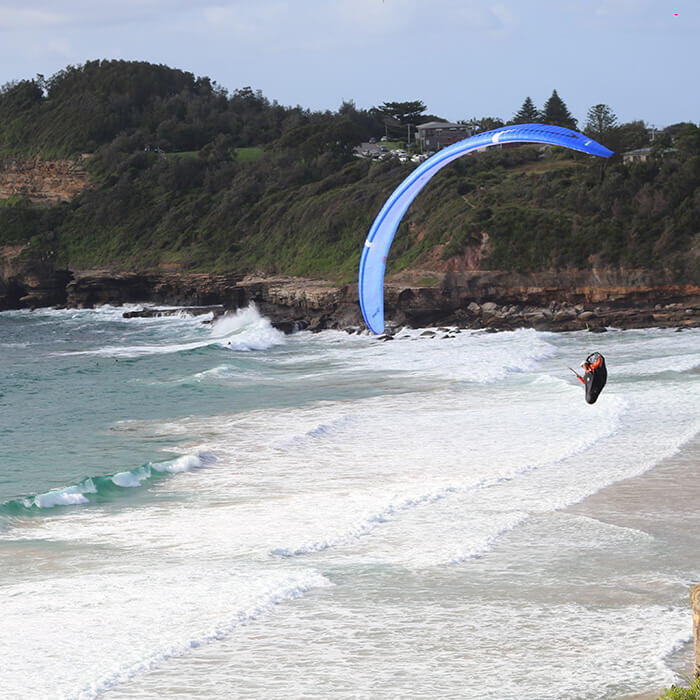

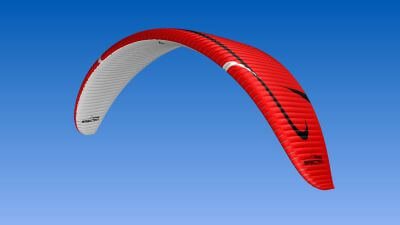

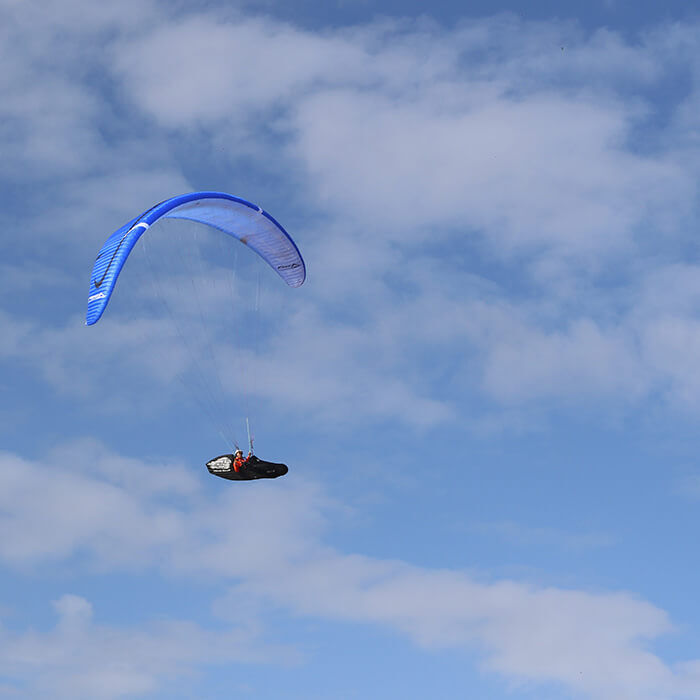

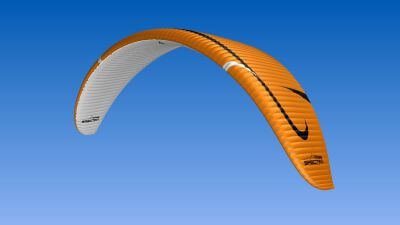

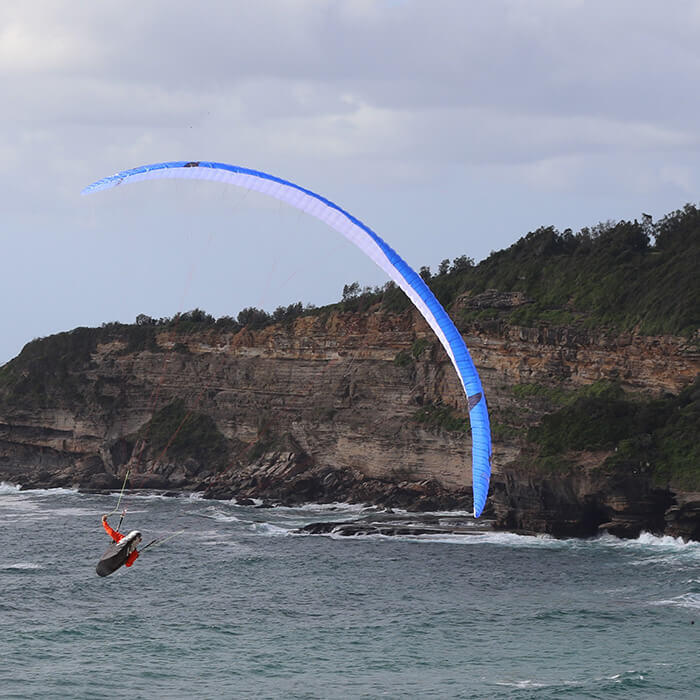

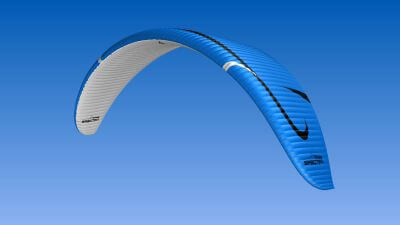

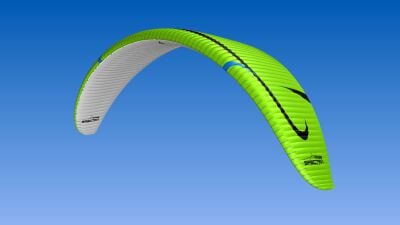

SPECTRA

Spectra is our CIVL Competition Class glider, widely known as CCC. Spectra’s design bridges the gap between sophistication and simplicity where innovative and thoughtful design concepts were adopted to minimize complexity which usually leads to extra weight and drag.

We concentrated on key areas and perfected those elements for improved performance without compromising safety.

The result is a glider which deforms less in turbulence, converts lift more efficiently, offers less distortion when AoA is changed and has less parasitic drag.

With 176 leading cells and a reduced total line count, the Spectra is the vanguard in glide performance and technology.

Spectra has numerous hidden features which can only be observed by the trained eye. Special attention was given to key elements on the design, such as:

leading edge structural integrity
general internal spanwise and chordwise rigidity and tension
the relative alignment of the airflow in relation to the wingtips, reducing drag.

These hidden technologies combined offer true performance gains and usability.

Spanwise and chordwise tension and rigidity were reinforced to optimize handling and glider solidity.

Spectra is a cohesive glider both in climb and glide and pilots who are accustomed to flying high-performance paragliders will feel comfortable and at ease to fly the Spectra and push the glider to the maximum.

TECHNICAL DATA

	S	M	ML	SL	L	XL
FLAT AREA	20.35m2	22.20m2	23.80m2	24.60m2	25.88m2	27.50m2
PROJECTED AREA	17.34m2	18.88m2	20.24m2	21.02m2	21.98m2	23.39m2
FLAT WINGSPAN	12.37m	13.05m	13.49m	13.80m	14.18m	14.52m
PROJECTED SPAN	10.08m	10.47m	10.84m	11.22m	11.45m	11.65m
ASPECT RATIO	7.65	7.65	7.65	7.65	7.65	7.65
PROJECTED AR	5.8	5.8	5.8	5.8	5.8	5.8
MAX CHORD	2.06	2.16	2.24	2.26	2.32	2.40
NUMBER OF CELLS	88	88	88	88	88	88
GLIDER WEIGHT	204.84m	204.84m	227.14m	230.2m	238.10m	249.86m
TAKE OFF WEIGHT	5.9	6.0	6.2	6.25	6.35	6.4
CERTIFICATION	80-95	95-105	100-115	105-120	110-125	115-135
	CCC	CCC	CCC	CCC	CCC	CCC

MATERIALS

CANOPY	FABRIC CODE	SUPPLIER
Upper Surface	Dominico DOKDO 30D MF/ Porcher SKYTEX 27 CLASSIC 2	Dominico terch Corp. Porcher Industries
Bottom Surface	Porcher SKYTEX 27 CLASSIC 2	Porcher Industries
Supported Ribs	Porcher 7000 E91	Porcher Industries
Unsupported Ribs	Porcher 9017 E29	Porcher Industries
Leading Edge Reinforcement	2.5/1.8/ Plastic pipe	Porcher Industries
Thread	210D/3, 420D/3 – UV coated	Coats Thread

SUSPENTION LINES	FABRIC CODE	SUPPLIER
Upper Cascades	Edelrid 8000U 130/090/070/050kg Edelrid 9200 030kg	EDELRID
Middle Cascades	Edelrid 8000U 190/130/090/070/050kg Edelrid 9200 030kg	EDELRID
Main Lines	Edelrid 8000U 360/190/130/050kg Liros DSL 140kg	EDELRID LIROS GmbH

RISERS	FABRIC CODE	SUPPLIER
Shackles	Maillon Rapide	ANSUNG PRECISION
Riser Webbing	12mm zero stretch polyester webbing	Guth & Wolth GMBH
Pulleys	Pulleys Ronstan ball bearing	Ronstan
