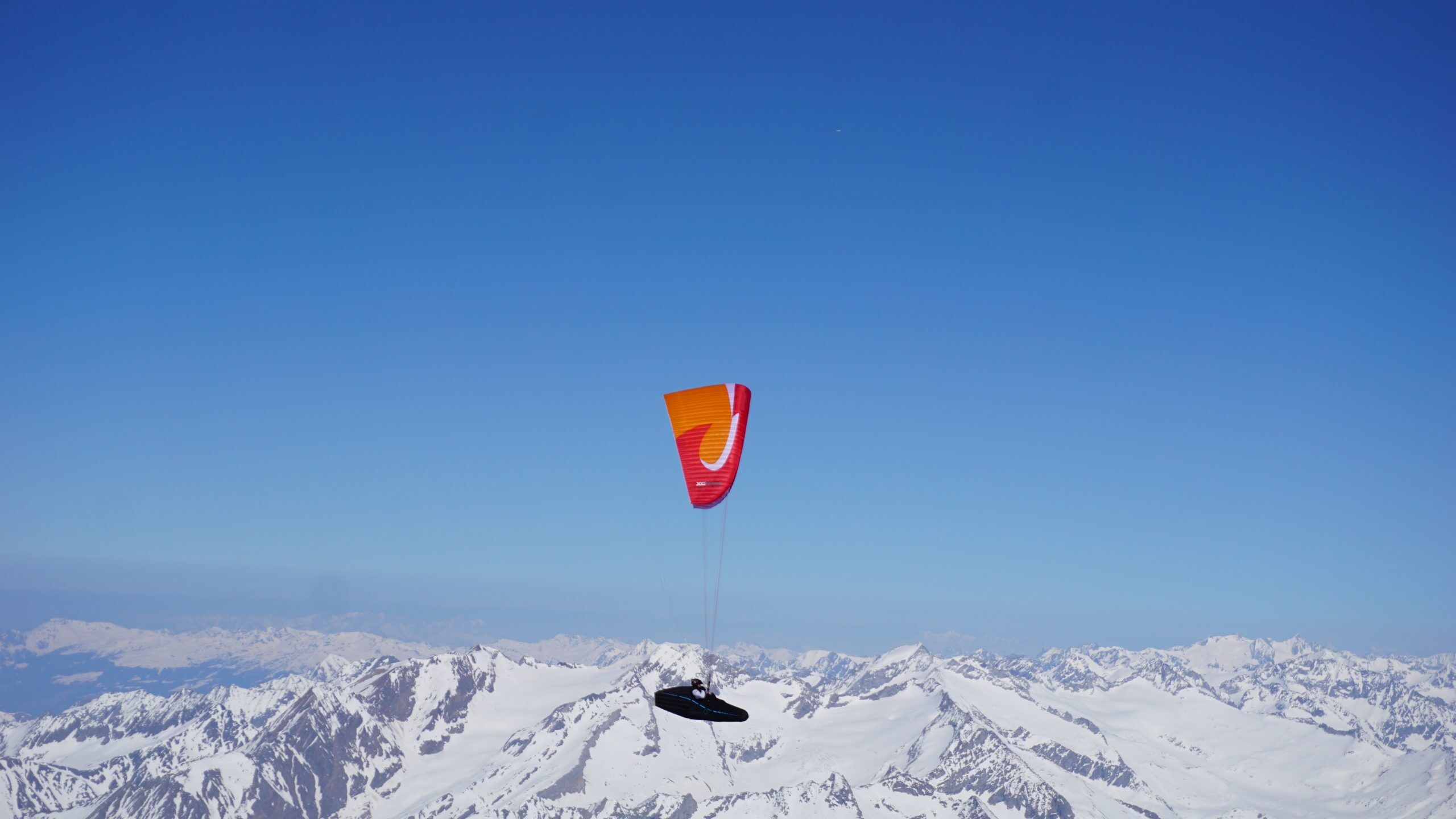

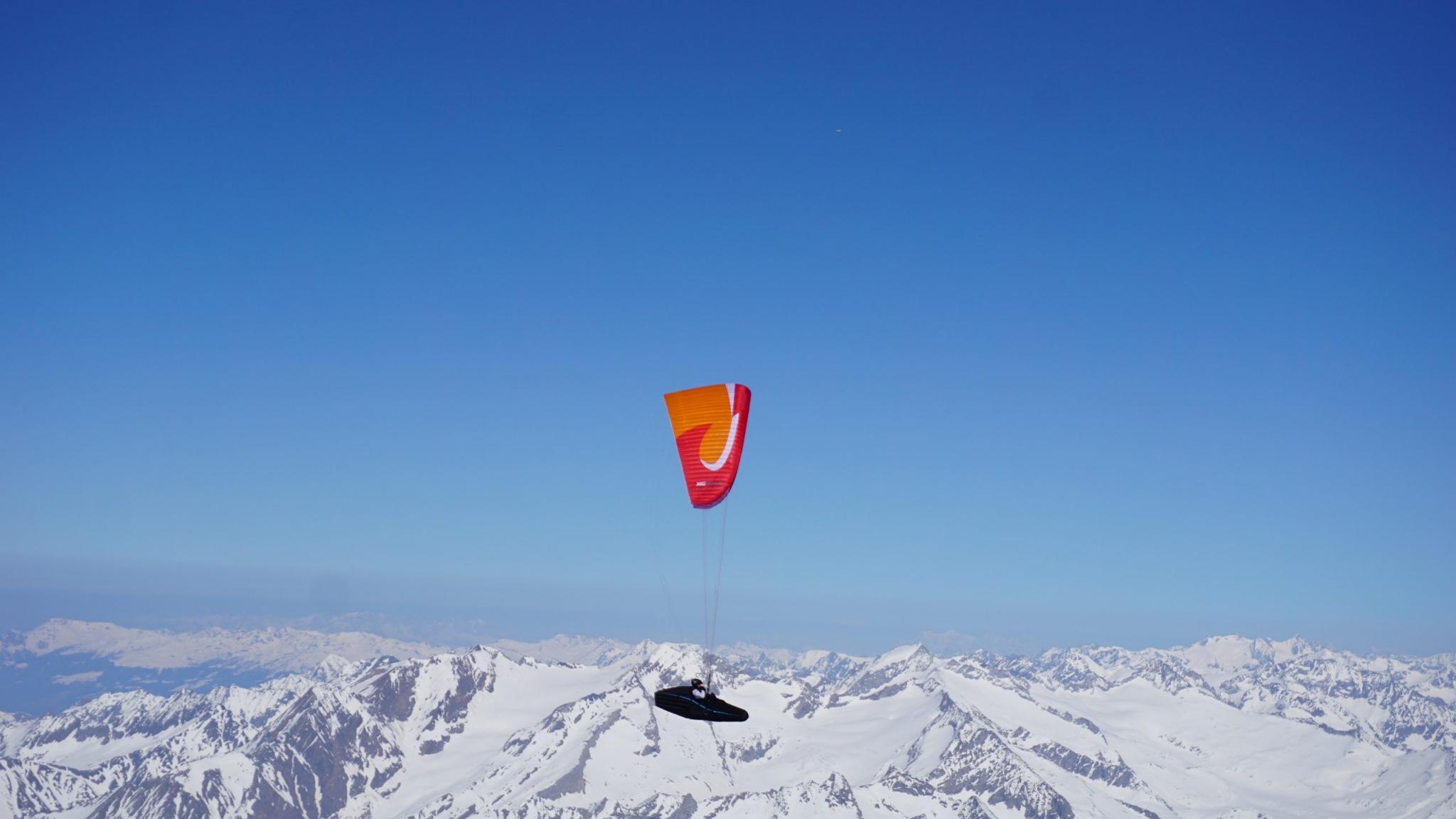

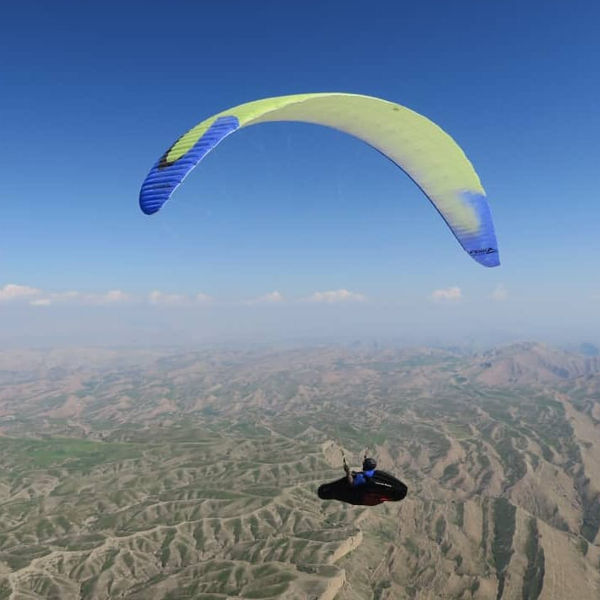

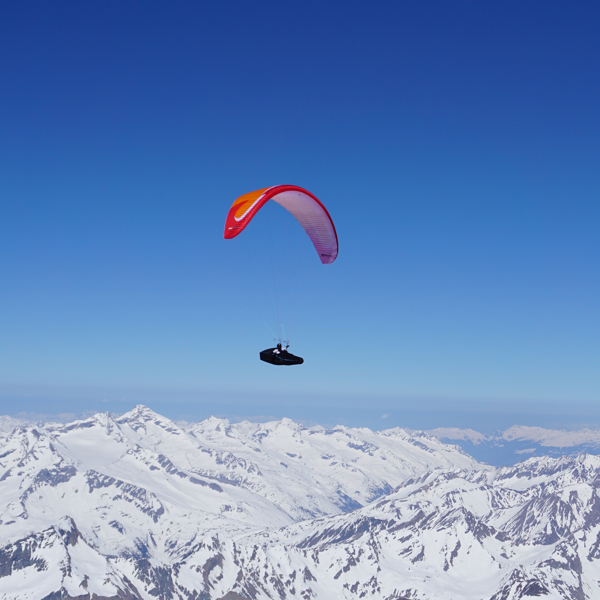

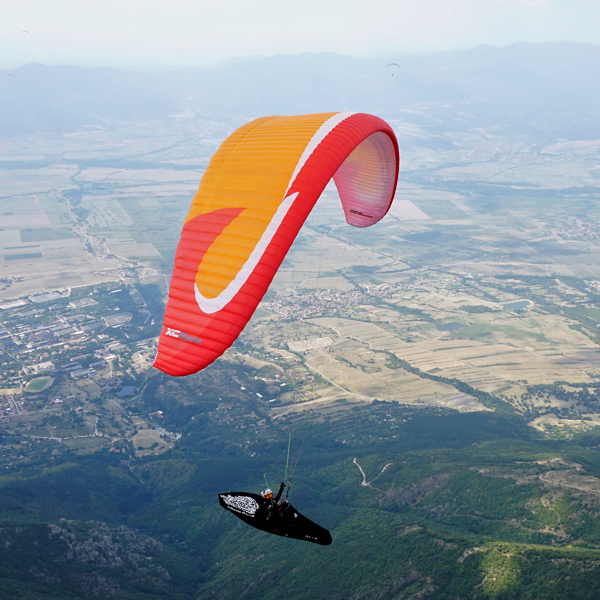

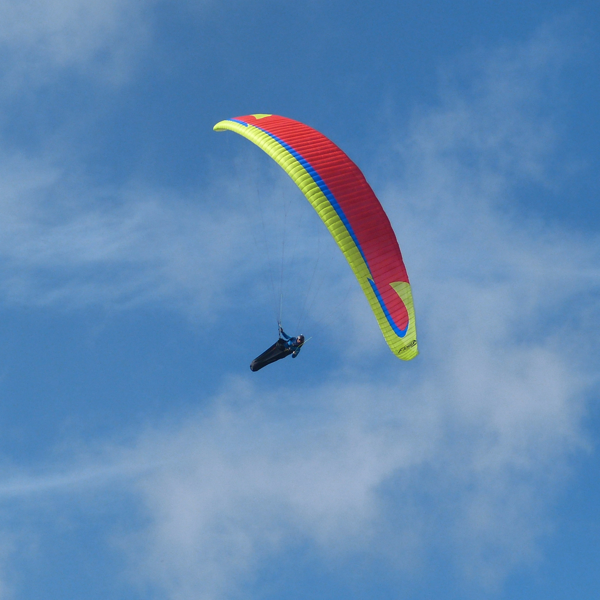

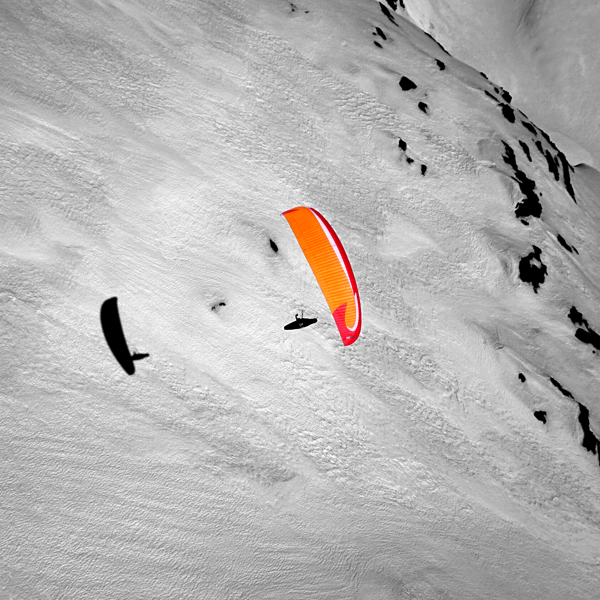

The Flow XCRacer is our EN D 2liner glider designed for the experienced pilot.
XCRacer is in the vanguard of paragliding design. A glider made for champions who are chasing XC distance records or the top of the podium.
A no-compromise project, where all the latest innovation and technologies are applied offering maximum efficiency and safety to achieve nothing less than true performance.
Despite the performance it delivers, the XCRacer is a well-balanced glider and pilots who are accustomed to fly high-performance gliders will feel comfortable and at ease with the XCRacer.
The in-house engineered shark nose profile offers incredible pitch stability and efficiency on glide. A minimum drag aerofoil and optimised lift coefficient combined with reduced line layout were carefully studied and tested to bring you a glider with benchmark performance.
Controls are sharp and precise. Rear riser controls are intuitive and easy to use connecting the pilot and glider. Giving the confidence-inspiring stability we are all seeking in a modern high-performance 2 line paraglider. The solidity is experienced in the entire speed range, from trim speed to full accelerated flight.
TECHNICAL DATA
| S | M |
ML |
L |
|
FLAT AREA |
21.75m2 | 22.80m2 | 24.75m2 | 26.55m2 |
PROJECTED AREA |
18.63m2 | 19.52m2 | 21.20m2 | 22.47m2 |
FLAT WINGSPAN |
12.34m | 12.66m | 13.20m | 13.66m |
PROJECTED SPAN |
10.01m | 10.30m | 10.73m | 11.11m |
ASPECT RATIO |
6.95 | 6.95 | 6.95 | 6.95 |
PROJECTED AR |
5.4 | 5.4 | 5.4 | 5.4 |
MAX CHORD |
2.21 | 2.27 | 2.36 | 2.48 |
NUMBER OF CELLS |
82 | 82 | 82 | 82 |
LINE CONSUMPTION |
196.57m | 203.4m | 210.8m | 225.5m |
GLIDER WEIGHT |
5.0 | 5.4 | 5.8 | 6.2 |
TAKE OFF WEIGHT |
75-95 | 85-105 | 95-115 | 105-125 |
CERTIFICATION |
EN-D | EN-D | EN-D | EN-D |
MATERIALS |
|
| UPPER SURFACE | Dominico 30D MF/Porcher 27g Classic 2 double coated |
| BOTTOM SURFACE | Procher 27g Classic 2 double coated |
| SUPPORTED PROFILES | Porcher 7000 E91 |
| UNSUPPORTED PROFILES | Porcher 9017 E29 |
| SUPPORTED DIAGONALS | Porcher 7000 E91 |
| UNSUPPORTED DIAGONALS | Porcher 9017 E29 |
| UPPER CASCADE | Edelrid 8000U 130/090/070/050 – Edelrid 9200 030 |
| MIDDLE CASCADE | Edelrid 8000U 190/130 – Edelrid 9200 030 |
| MAIN LINES | Edelrid 8000U 360/230/190 – Liros ppsl 160 |
| BRAKE LINE | Edelrid 10-200-040 |
| PULLEY | Ronstan Ball bearing |
| RISERS | Guth & Wolth GMBH 12mm zero stretch polyester webbing |

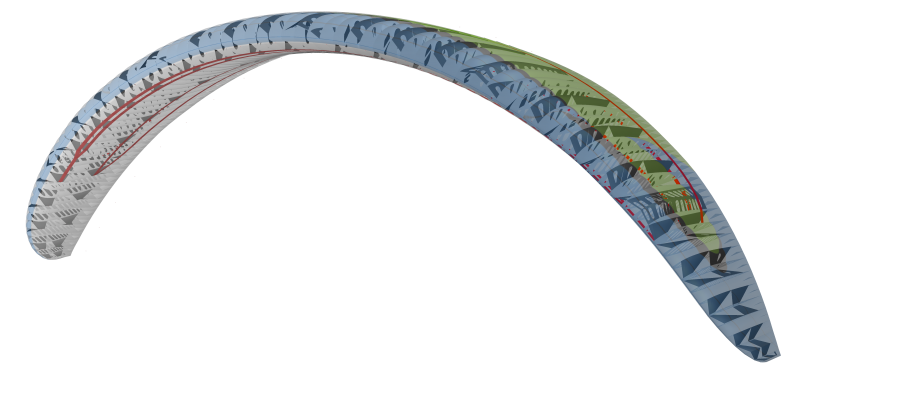

ADVANCE INTERNAL STRUCTURE TENSIONING – AIST
Spanwise and chordwise precision tensioning

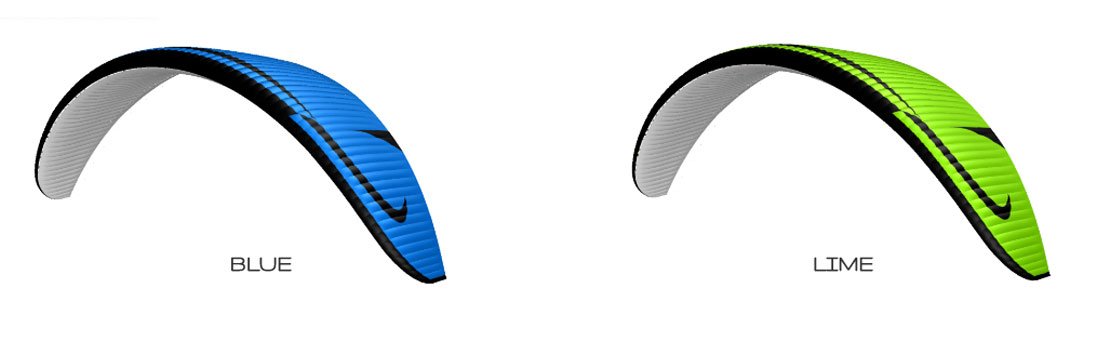

COLOURS
